jQuery+CSS3箭头式滑块特效
PetitQ

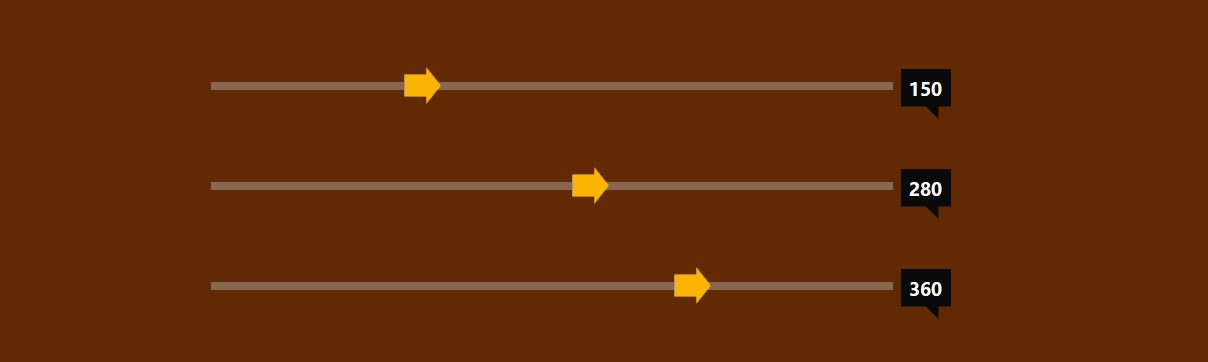

这是一款 jQuery 和 CSS3 箭头式滑块特效。该特效通过 jquery 和 CSS 对 input range 进行改造，制作出箭头样式的滑块。
使用方法
在页面中引入 jquery.min.js 和 bootstrap.min.css 文件。
也想出现在这里？联系我们吧
<link href="css/bootstrap.min.css" rel="stylesheet">
<script type="text/javascript" src="js/jquery.min.js"></script>
HTML 结构
该箭头式滑块特的 HTML 结构如下。
<div class="container">
<div class="row pad-15">
<div class="col-md-offset-2 col-md-8">
<div class="range-slider">
<input type="range" value="150" min="0" max="500">
<span class="range-value">0</span>
</div>
<div class="range-slider">
<input type="range" value="280" min="0" max="500">
<span class="range-value">0</span>
</div>
<div class="range-slider">
<input type="range" value="360" min="0" max="500">
<span class="range-value">0</span>
</div>
</div>
</div>
</div>
CSS 样式
然后通过下面的 CSS 样式来制作箭头特效。
.range-slider{ margin: 50px 0 0 0; }
.range-slider input[type="range"]{
width: calc(100% - (68px));
height: 8px;
background: rgba(195, 195, 195, 0.4);
outline: none;
float: left;
-webkit-appearance: none;
position: relative;
}.range-slider input[type="range"]::-webkit-slider-thumb{
width: 35px;
height: 35px;
background: #fab403;
cursor: pointer;
-webkit-appearance: none;
appearance: none;
-webkit-clip-path: polygon(0% 20%, 60% 20%, 60% 0%, 100% 50%, 60% 100%, 60% 80%, 0% 80%);
clip-path: polygon(0% 20%, 60% 20%, 60% 0%, 100% 50%, 60% 100%, 60% 80%, 0% 80%);
transition: all 0.15s ease-in-out 0s;
}.range-slider input[type="range"]::-webkit-slider-thumb:hover,
.range-slider input[type="range"]:active::-webkit-slider-thumb{ background: #0deccf; }
.range-slider input[type="range"]::-moz-range-thumb{
width: 35px;
height: 35px;
background: #fab403;
cursor: pointer;
-webkit-clip-path: polygon(0% 20%, 60% 20%, 60% 0%, 100% 50%, 60% 100%, 60% 80%, 0% 80%);
clip-path: polygon(0% 20%, 60% 20%, 60% 0%, 100% 50%, 60% 100%, 60% 80%, 0% 80%);
transition: all 0.15s ease-in-out 0s;
}.range-slider input[type="range"]::-moz-range-thumb:hover,
.range-slider input[type="range"]:active::-moz-range-thumb{ background: #0deccf; }
.range-slider .range-value{
display: inline-block;
width: 50px;
height: 50px;
background: #0a0a0a;
margin-left: 8px;
font-size: 18px;
font-weight: 600;
color: #fff;
line-height: 40px;
text-align: center;
position: relative;
top: -13px;
-webkit-clip-path: polygon(0% 0%, 100% 0%, 100% 75%, 75% 75%, 75% 100%, 50% 75%, 0% 75%);
clip-path: polygon(0% 0%, 100% 0%, 100% 75%, 75% 75%, 75% 100%, 50% 75%, 0% 75%);
}::-moz-range-track{
background: transparent;
border: 0;
}
Javascript
最后通过下面的 jquery 代码来在滑块移动时，修改滑块的数值。
$(document).ready(function(){
var rangeSlider = function(){
var slider = $('.range-slider'),
range = $('.range-slider input[type="range"]'),
value = $('.range-value');
slider.each(function(){
value.each(function(){
var value = $(this).prev().attr('value');
$(this).html(value);
});
range.on('input', function(){
$(this).next(value).html(this.value);
});
});
};
rangeSlider();
});
| 演示地址 | 下载地址 |
